MANTA MKII ASD
17M FAST PATROL/ INTERCEPTOR CRAFT (FPIC)

The MANTA FPIC belongs to our highly successful series of multi-purpose high speed crafts adopting the award-winning ASD (Arrow System Design) hull shape.

The craft’s size affords it the flexibility to integrate a variety of mission-specific equipment & capabilities for military and law enforcement operations.

The MANTA ASD is produced in a few variants and collectively can fulfil a wide range of operational requirements:

  • Attack
  • Patrol / Escort
  • Border Protection
  • Search & Rescue
  • Beach Deployment & Land Ops Support

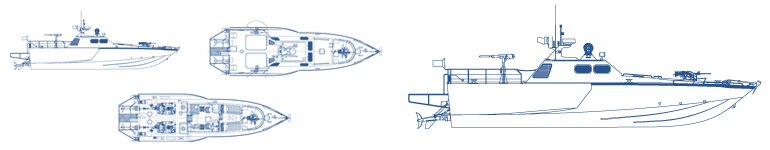

manta pic_1
SERIES MK II
VARIANT MILITARY
Material Aluminium
Length Overall 16.50 m
Breadth Transom 4.30 m
Draft @ Transom(Full Load) 1.0 m
Ballistic Protection NIJ Level 3
Propulsion 2 x SD
Total Installed Power 2 x 1200 HP(MTU)
Maximum Speed +45 knots @ full load condition
Range @ 35 knots Constant Speed ~ 250 NM
Crew 6
