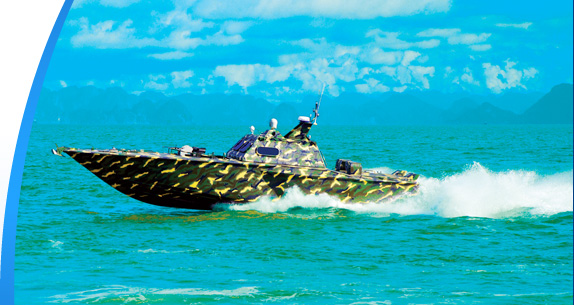

PIRANHA ASD
15m Fast Patrol/ Interceptor Craft (FPIC)
The SUNCRAFT PIRANHA FPIC is a multi-purpose, armoured high-speed craft designed according to the award-winning ASD (Arrow System Design) hull shape.
The PIRANHA is mainly conceived as an assault craft, operating alone or as part of a larger force in inland waters, but the versatility afforded by its design allows it to undertake wide ranging roles, which include:
- Attack
- Patrol / Escort
- Maritime Interdiction
- Border Protection
SERIES |
MK II |
Material |
Aluminium
|
Length Overall |
14.80 m |
Draft @ Transom(Full Load) |
0.9 m |
Breadth @ Transom |
3.8 m |
Ballistic Protection (Optional) |
NIJ Level 3 |
Propulsion |
2 x SD |
Total Installed Power |
2 x 730 HP(MAN) |
Maximum Speed |
+40 knots @ full load condition |
Range @ 35 knots Constant Speed |
~200 NM |
Crew + Passengers |
4 - 6 |
